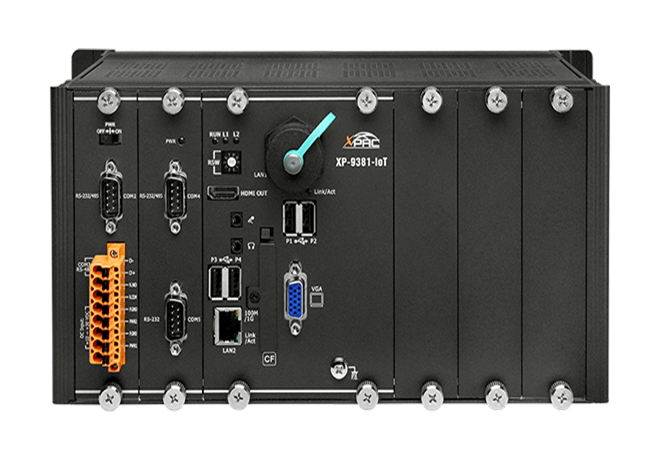

• XP-9381-IoT
  3-slot Metal Standard PAC with E3845 CPU and Windows 10 IoT


The XP-9381-IoT are Windows 10 IoT Enterprise based PACs that combine computing, I/O, and operator interface into a single unit, and provide a perfect solution to integrate HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interfaces. Local I/O slots are available for use with our I-9K and I-97K series I/O modules. And remote I/O expansions are available for use with Ethernet I/O modules or RS-485 I/O modules.

軟件
OS	Windows 10 IoT Enterprise (64-bit)
服務	IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
Framework 支持	.Net Framework 3.5 ~ 4.8
多国语系	English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese
SDK	Dll for VC, Dll for Visual Studio.Net

主要单元
CPU	E3845, 1.91 GHz, 64-bit quad core
64-bit 硬件序号	Yes
系統內存	4 GB DDR3 SDRAM, 64 GB Flash
儲存	64 GB SSD, 32 GB CF card
非挥发性储存器	128 KB MRAM, 16 KB EEPROM
实时时钟	Provide seconds, minutes, hours, dates, day of week, month, year
看門狗计时器	Dual Watchdog Timer

显示
訊号	VGA, HDMI
解析度	VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp

LED 灯
状态	1 x System, 2 x Power, 2 x Programmable

I/O 扩充
I/O 类型	I-9K, I-97K series
槽数	3

串口
端口	1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated)

HMI
蜂鸣器	Yes
旋转开关	1 x 10 Position (0 ~ 9)

音效
插孔	麦克风输入和耳机输出

乙太网络
Ports	2 x RJ-45, 10/100/1000 Base-TX

USB
Ports	4 x USB 2.0

电源
输入范围	+10 ~ 30 VDC (1 kV Isolated )
冗余电源输入	Yes
功耗	18.7 W

机構
尺寸 (mm)	300 x 164 x 133 (W x L x H)
安裝	DIN-Rail, Wall mounting

环境
工作温度	-25 ~ +60 °C
储存温度	-30 ~ +80 °C
湿度	10 ~ 90 % RH, Non-condensing
