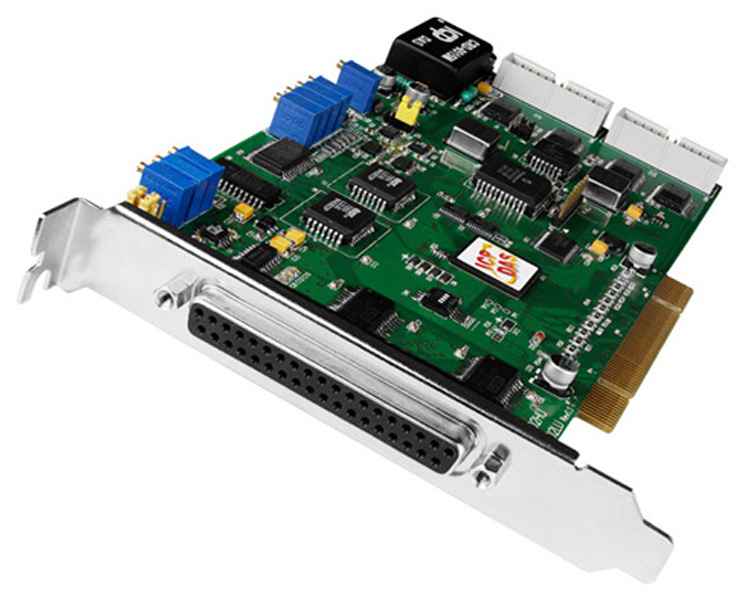

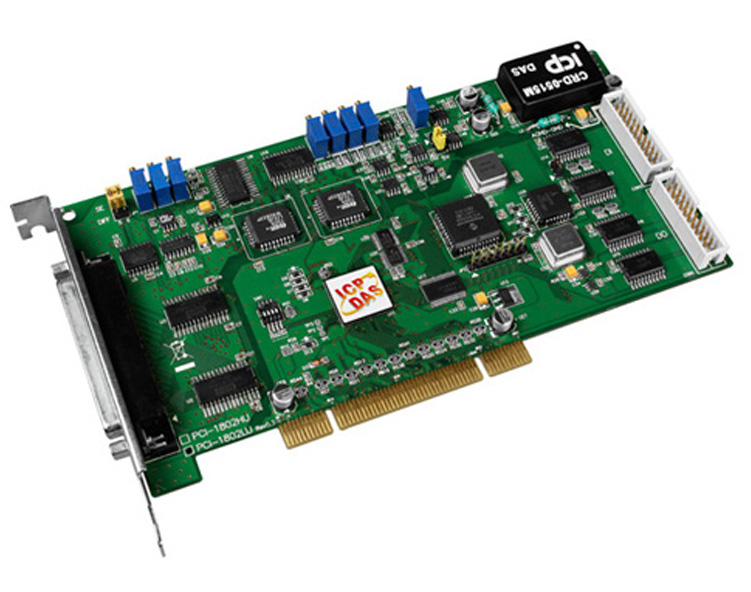

产品简介

• PCI bus, 5 V, 32-bit, 33 MHz for PCI-1800/1802L/H
• 12-bit 330 kHz A/D converter
• AI channels:
16 single-ended/8 differential inputs, 1 K word FIFO buffer for PCI-1800 series 32 single-ended/16 differential inputs, 8 K word FIFO buffer for PCI-1802 series
• Total sampling rate:
up to 330 K samples/s for low gain model up to 44 K samples/s for high gain model
• Programmable gain:
Low gain: 0.5, 1, 2, 4, 8 for PCI-1800/1802L/LU High gain: 0.5, 1, 5, 10, 50, 100, 500, 1000 for PCI-1800/1802H/HU
• Three different external trigger: post-trigger, pre-trigger, middle trigger
• Internal/external A/D trigger
• 16 digital input/16 digital output channels
• Two 12-bit DA channels, 2 MHz throughput per channel (max.)
• High speed data transfer rate up to 2.7 Mword/sec.
• DB-889D accessory for expanding channels of PCI-1800 series
• DB-889D and DB-1825 accessories for expanding channels of PCI-1802 series
• Half size board
