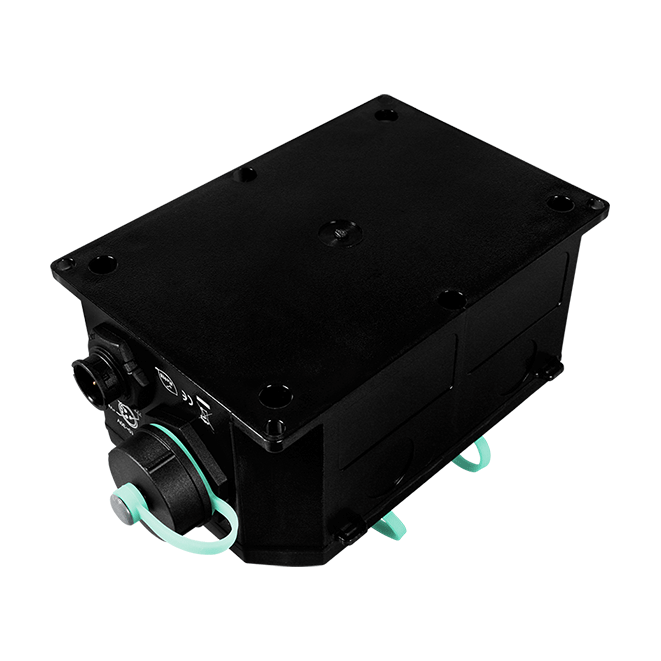

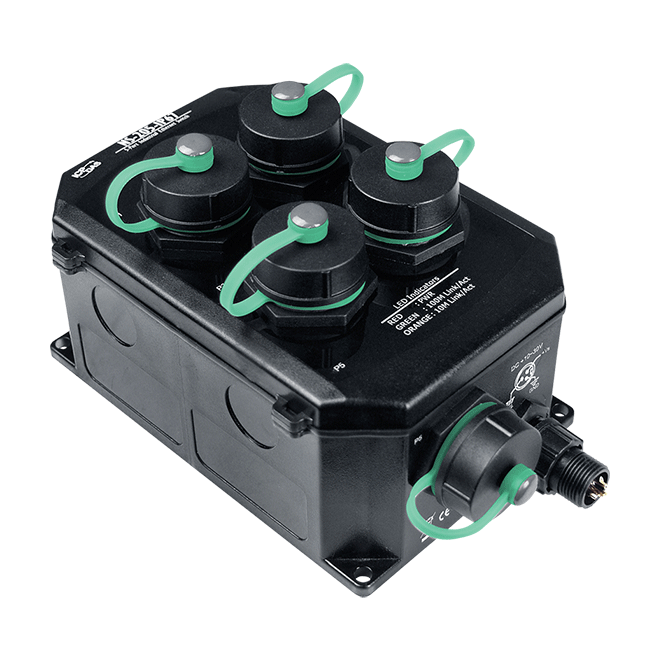

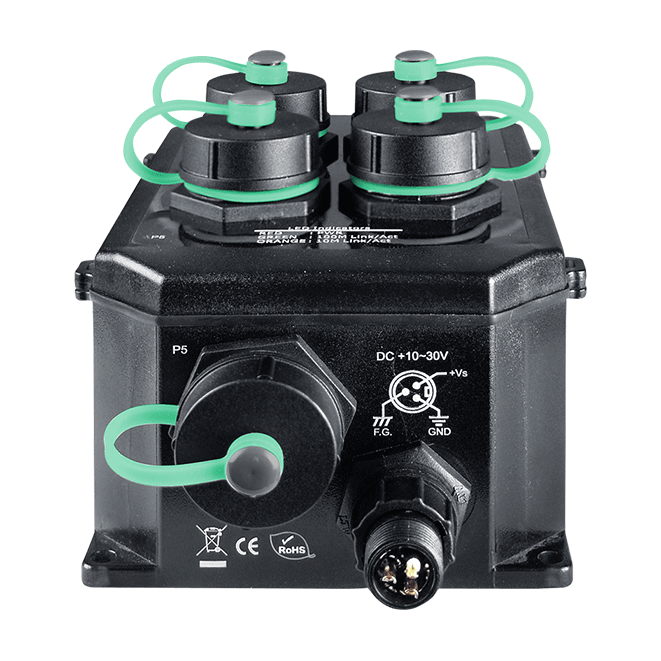

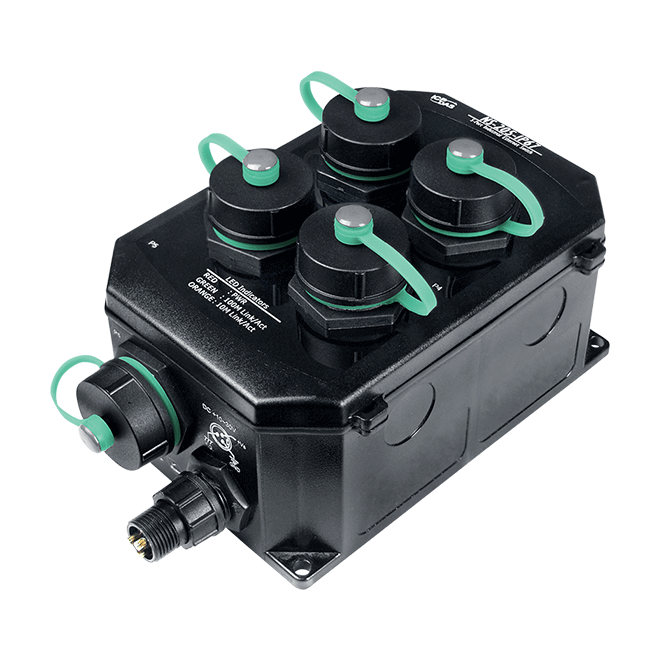

Industrial 5-port unmanaged IP67 Ethernet switch

产品简介

Automatic MDI/MDI-X crossover for plug-and-play
Store-and-forward architecture
Each port supports both 10/100 Mbps speed auto negotiation
Full duplex IEEE 802.3x and half duplex backpressure flow control
Rugged RJ45 Connector for anti-vibration and shock
IP67 grade protection approval

规格

LED 灯
状态	PWR, 10/100M, Link/Act

乙太网络
Ports	5 x RJ-45, 10/100Base-TX
標準	IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
處理型式	Store & forward; wire speed switching
MAC 長度	1024
記憶体頻寬	1.4 Gbps
幀緩沖存儲器	256 Kbit
流量控制	IEEE 802.3x fl ow control, back pressure flow control
隔離	1500 Vrms 1 minute

电源
反极性保护	Yes
输入范围	+10 ~ +30 VDC (1 kV Isolated)
功耗	0.12 A @ 24 VDC

机構
外壳	Plastic
尺寸 (mm)	85 x 137 x 76 (W x L x H)
安裝	Wall mounting
防水防尘等级	IP67 for Operating Temperature -10 °C ~ +60 °C IP66 for Operating Temperature -40 °C ~ +75 °C

环境
工作温度	-10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66)
储存温度	-10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66)
湿度	100% RH for Operating Temperature -10 °C ~ +60 °C 10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C
