产品简介
- Supports PCI Express x1
- 8 channels, 14-bit AO
- Voltage output range: ±10 V
- Current output range: 0 ~ 20 mA (sink)
- Two timer/counter interrupt sources
- Software calibration
- 16 channels DI
- 16 channels DO
- Card ID Function(SMD Switch)
- Pull-high/Pull-low Jumpers for DI Ports
For the PEX-DA series, their voltage output range is from -10 V to +10 V, and their current output range is from 0 to 20 mA. In addition, These cards also feature the following advantages by ICP DAS's innovation: Accurate and easy-to-use calibration. ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore.
The calibration information can be saved in EEPROM for long-term use. Individual channel configuration.In other words, every channel can be individually configured as voltage output or current output! ICP DAS provides the Card ID function. Users can set card ID for each card and then recognize them one by one when more than two boards are used in a computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

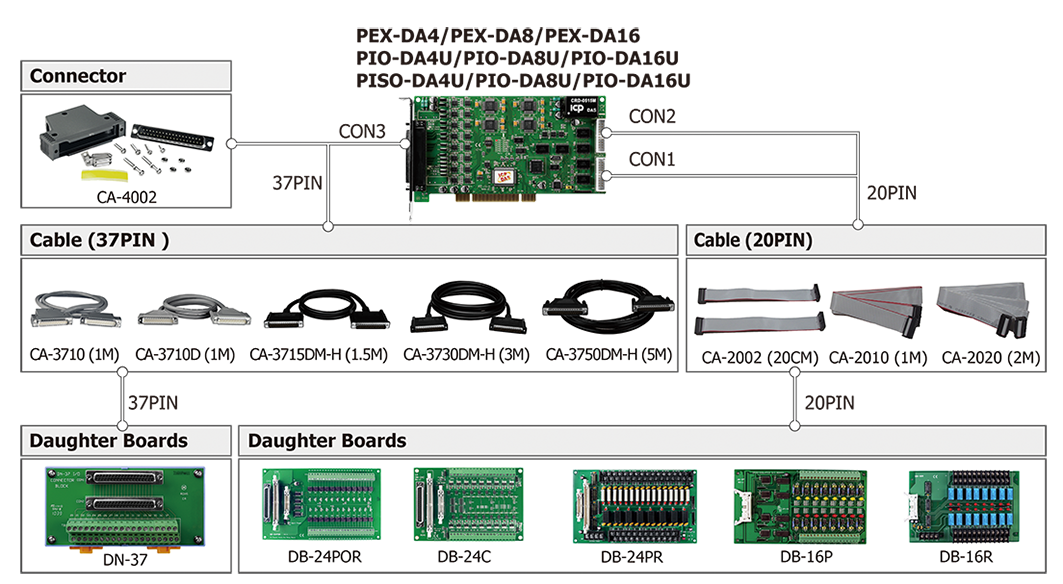

配件
(16)_PIO-DA4U(8U)(16U)_PISO-DA4U(8U)(16U)-accessories.png)
应用
High speed data acquisition system.
Process monitor and control.
Vibration analysis.
Digital pattern generator from digital I/O port.
规格
| 硬件 |
| 板卡 ID |
Yes (4-bit) |
| 接头 |
Female DB37 x 1
20-pin Box header x 2 |
| 模擬量输出 |
| 通道数 |
8 |
| 范围 |
Voltage: ± 10 V
Current: 0 ~ 20 mA |
| 解析度 |
14-bit |
| 精度 |
0.04% of FSR ± 2 LSB @ 25 °C, ± 10 V |
| 反应时间 |
166 kHz (Typical) |
| 电压输出推力 |
±5 mA |
| 斜率 |
0.71 V/μs |
| 工作模式 |
Static Update |
| 数字量输入 |
| 通道数 |
16 |
| 类型 |
5 V/TTL |
| ON 电压准位 |
2.0 V Min. |
| OFF 电压准位 |
0.8 V Max. |
| 反应速度 |
500 kHz (Typical) |
| 触發模式 |
Static Update |
| 数字量输出 |
| 通道数 |
16 |
| 类型 |
5 V/CMOS |
| 工作模式 |
Static Update |
| 負载电压 |
Logic 0: 0.1 V Max.
Logic 1: 4.4 V Min. |
| 負载电流 |
Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V |
| 反应速度 |
500 kHz (Typical) |
| 计时/计数/頻率 |
| 通道数 |
3 |
| 类型 |
5 V/TTL |
| 解析度 |
16-bit |
| 參考时钟 |
Internal: 4 MHz |
| PC 总线 |
| 类型 |
PCI Express x 1 |
| 数据总线 |
8-bit |
| 电源 |
| 功耗 |
750 mA@ +3.3 V
400 mA@ +12 V |
| 机構 |
| 尺寸 (mm) |
116.4 x 172.6 x 22 (W x L x D) |
| 环境 |
| 工作温度 |
0 ~ +60°C |
| 储存温度 |
-20 ~ +70°C |
| 湿度 |
5 ~ 85% RH, Non-condensing |
